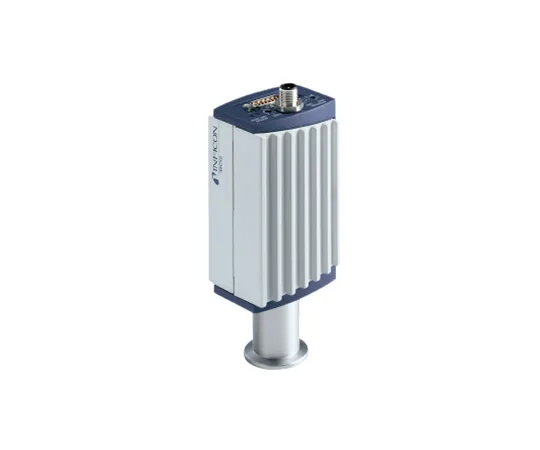

69-3848-85 Triple Ion Gauge BCG450 DN25 ISO-KF 353-550
Product Description
Product Model: 69-3848-85Product Brand: INFICON Feature […]
Contact Us
Product Details
Product Model: 69-3848-85
Product Brand: INFICON
Features
- BA Ion Pilani Capacitance Diaphragm/Triple Gauge
- Allows measurement of a wide range of pressure regions
- The BA ion gauge is automatically turned on and off.
- Piranha interlock reduces filament disconnection when the atmosphere is suddenly opened
- It is possible to measure close to atmospheric pressure.
- Sensor unit replaceable
- RoHS Compliance (as of October 2024)
Spec
- Measured Output Range: 150,000~5 x 10-8 Pa
- Recomm***ed measurement area: 150,000~1 x 10-6 Pa
- Measurement accuracy: ±2.5% to 15% (recomm***ed measurement range)
- Filament Material: Oxidized yttria coated iridium
- BA filament: 1 piece
- Connecting Flange: DN25 ISO-KF
- D-sub 15 (male)
- Operating ambient temperature: 0~50°C
- Size: 67 x 58 x 155 mm
- Weight: 285 g
- Product Warranty: 1 year from date of shipment
