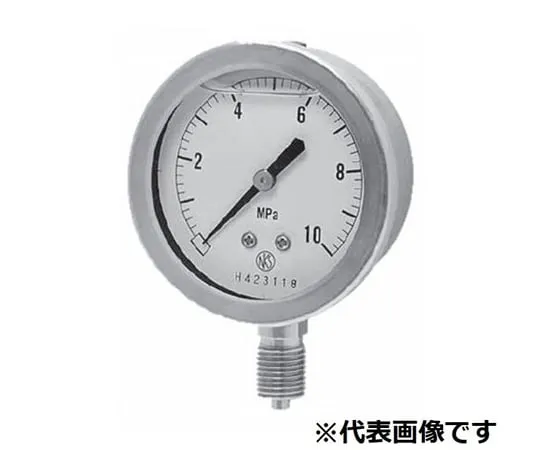

67-4841-67 Glycerin Tonometer/AUPT1/4-60 GV50-173 x 15MPA 0475-01-0006432
Product Description
Product Model: 67-4841-67Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 67-4841-67
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- [Features]
- Excellent corrosion resistance and atmosphere resistance due to stainless steel wetted part and case material.
- The safety window (blowout disc) on the top of the instrument prevents the glass from breaking if the Bourdon tube bursts.
- For φ60 and φ75, an arrow-shaped safety mark can be attached to the pressure gauge case and can be set to an arbitrary pressure value.
- Dry type without filling with glycerin can be manufactured.
Spec
- Size: 60φ
- Case External Shape: Vertical Type Without Flange
- Connection: R1/4
- Wetted Part Material: Bruton Tube: SUS316, Connection Part: SUS316
- Pressure range: 0~15Mpa
- Code: 119-0165970
