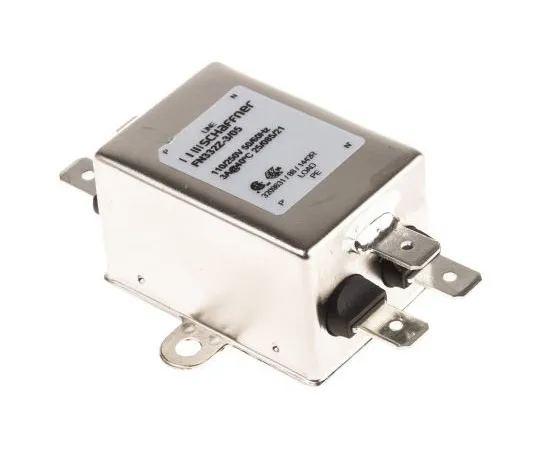

63-4732-33 Schaffner FN332Z Series 3A 250 V ac 400Hz Flange Mount RFI Filter, with Tab Terminals FN332Z-3-05
Product Description
Product Model: 63-4732-33Product Brand: Schaffner Featu […]
Contact Us
Product Details
Product Model: 63-4732-33
Product Brand: Schaffner
Features
- SEV, UL, VDE, CSA, SEMKO, DEMKO. FN332Z Series. Schaffner FN332Z series RFI filters are designed for easy and fast access chassis mounting. These filters have high saturation resistance and high inductivity.are also available with integrated surge Pulse protection to safeguard sensitive electrical equipment. Maximum continuous operating voltage 250 V ac, 50/60 Hz. Applications. Consumer goods Electrical and electronic equipment Ho***hold equipment Office automation equipment Power supplies Industrial equipment auxiliary supply Datacom equipment"
Spec
- Quantity：1piece
- Maximum Current Rating : 3A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Flange Mount
- Termination Style : Tab
- Number of Stages : Single Stage
- Operating Frequency : 400Hz
- Length : 45mm
- Depth : 65.6mm
- Height : 24.8mm
- Inductance : 2 mH
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +100°C
- CODE No.:217-0713
