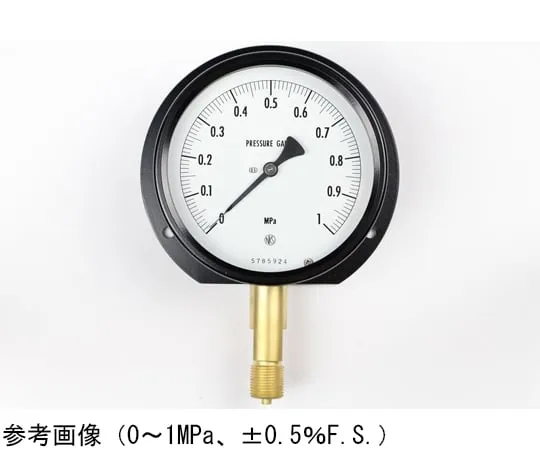

65-4312-38-20 Class 0.5 Pressure Gauge (100Φ) with 0.1~0.1 MPa Inspection Certificate GA11-231
Product Description
Product Model: 65-4312-38-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4312-38-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- This instrument is a pressure gauge using a stainless steel Bourdon tube designed especially for high precision, and the case is dust-proof to prevent dust from entering the inside of the instrument. Used for high-precision pressure measurement, research experiments, and calibration of secondary instruments as standard gauges.
Spec
- Size (mm): Φ100
- Shape (Mounting): Vertical B Frame
- Connections: G3/8B
- Material: Brass
- Pressure Range: MPa_-0.1~0.1
- Accuracy: ±0.5%F.S.
- Treatment: Pear
- Class: 0
