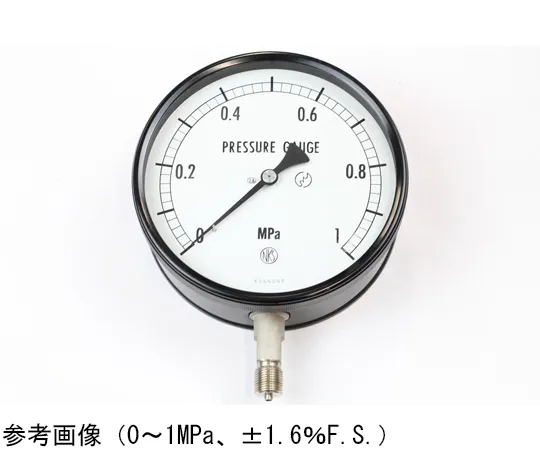

65-4305-42-20 Sealed Pressure Gauge (150Φ) Vertical A Frame with 0.6 MPa Inspection Certificate BG10-133
Product Description
Product Model: 65-4305-42-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4305-42-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is ***d in a wide range of fields.
- The *** of a sealed case allows it to be ***d under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
Spec
- Size (mm): Φ150
- Shape (Mounting): Vertical A-Frame
- Connections: G3/8B
- Material: SUS
- Performance: Pear
- Pressure Range: MPa_0~0.6
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
