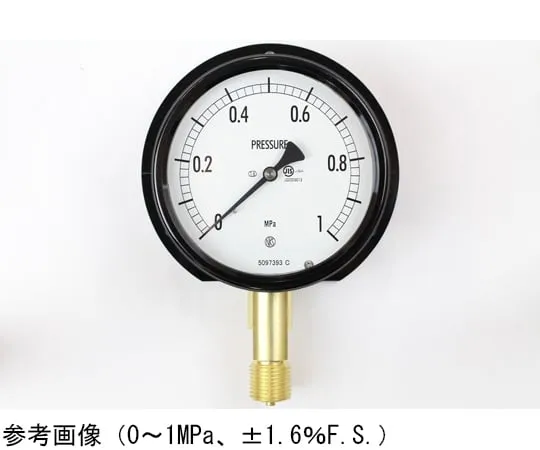

65-4304-86 Sealed Pressure Gauge (100Φ) Vertical B Frame 1.6 MPa BE12-241
Product Description
Product Model: 65-4304-86Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4304-86
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is used in a wide range of fields.
- The use of a sealed case allows it to be used under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
Spec
- Size (mm): Φ100
- Shape (Mounting): Vertical B Frame
- Connections: G1/2B
- Material: Brass
- Performance: Pear
- Pressure Range: MPa_0~1.6
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
