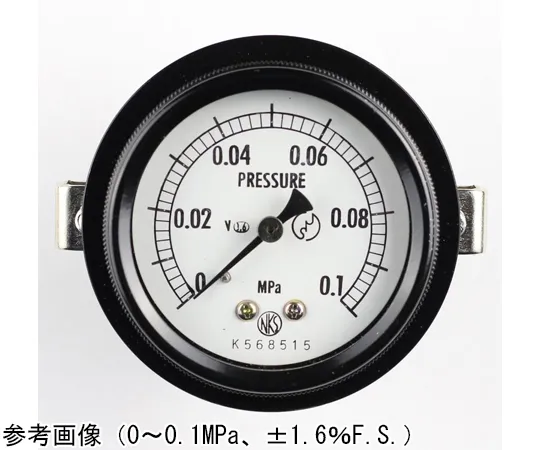

65-4293-61-20 Sealed Pressure Gauge (60Φ) Embedded D Frame (Mounting Bracket) with 0.1 MPa with Inspection Certificate for Vibration Resistance BA15-121
Product Description
Product Model: 65-4293-61-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4293-61-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is ***d in a wide range of fields.
- The *** of a sealed case allows it to be ***d under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
Spec
- Size (mm): Φ60
- Shape (Mounting): Embedded D Frame (Mounting Bracket)
- Connections: G1/4B
- Material: Brass
- Performance: For Vibration Resistance
- Pressure Range: MPa_0~0.1
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
