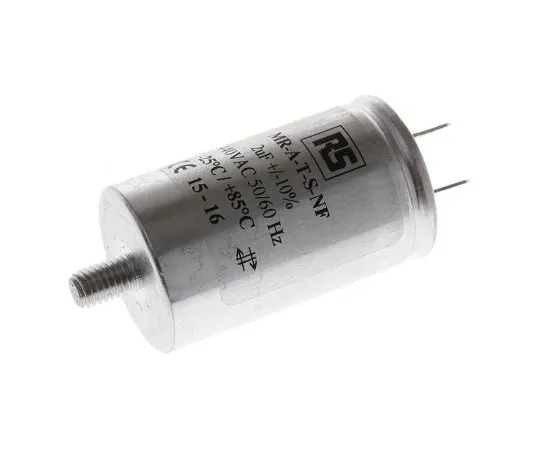

63-4722-76 RS Pro 2μF Polypropylene Capacitor PP 440V ac ±10% Tolerance Screw Mount 196-4646
Product Description
Product Model: 63-4722-76Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4722-76
Product Brand: RS PRO
Features
- MRA440 Series Polypropylene Film Capacitor. Brought to you under the trusted RS Brand, these MRA440 Series of Polypropylene Film Capacitors are designed for permanent connection in the auxiliary windings of single-phase induction motors. The polypropylene film element of these motor run capacitors is encapsulated with a flame retardant resin and ho***d within an aluminium case. Features and Benefits:. Dissipation Factor ≤ .001 double (1/4 inch), terminals suitable for soldering or push-on receptacles Mounts with an M8X10mm stud
Spec
- Quantity：1piece
- Capacitance : 2µF
- Voltage : 440V ac
- Mounting Type : Screw Mount
- Tolerance : ±10%
- Series : MRA440
- Length : 56mm
- Dimensions : 30 (Dia.) x 56mm
- Dielectric : PLYP
- Minimum Operating Temperature : -25°C
- CODE No.:196-4646
