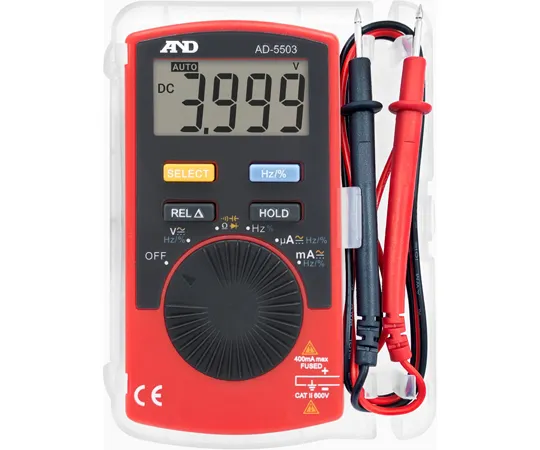

65-3904-47 Hard Case with Test Lead Storage Digital Multimeter General (ISO) with Calibration (Inspection Report + Tresability System Diagram) AD5503-00A00
Product Description
Product Model: 65-3904-47Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 65-3904-47
Product Brand: A&D
Features
- Comes with a certificate of general calibration.
- With hard case with test lead storage.
- 3999 Count display digital multimeter.
- Easy-to-carry card type (Only 10.8 mm thick and 76 g heavy), the test lead can be stored in the case.
- Prevent battery drain even if you forget to turn off the camera using the sleep function.
- With auto range function, display hold function, continuity check function, duty ratio measurement function, frequency measurement function, diode test function, capacitor capacitance measurement function, and relative value (comparison) measurement function.
Spec
- Display: 3999 count LCD
- Measurement items: DC voltage, AC voltage, DC current, AC current, resistance, frequency, continuity check, duty ratio, capacitor, diode check
- Measurement Range (* Maximum Accuracy) DC Voltage: 400 m/4/40/400/600V *± (0.8%rdg+2dgts)
- Measurement Range (* Maximum Accuracy) AC Voltage: 4/40/400/600V *± (1.2%rdg+3dgts)
- Measurement Range (* Maximum Accuracy) DC Current: 400μ/4000μ/40 m/400 mA *± (1.0%rdg+3dgts)
- Measurement Range (* Maximum Accuracy) AC Current: 400μ/4000μ/40 m/400 mA *± (1.5%rdg+3dgts)
- Measurement Range (* Maximum Accuracy) Resistance: 400/4k/40k/400k/4M/40 MΩ *± (1.0%rdg+2dgts)
- Measurement Range (* Maximum Accuracy) Frequency: 5/50/500/5k/50k/500k *± (0.5%rdg+3dgts)
- Duty ratio: 0.1~99.9%
- Capacitor (* highest accuracy): 50n/500n/5μ/50μ/100 μF *± (4%rdg+3dgts)
- Diode Check: Measure the forward voltage of the diode
- Conductivity check: Alarm (buzzer) sound sounds at approximately 10 Ω or less.
- Maximum input voltage: DCV 600VDC, ACV 600Vrms
- Maximum input current: 400 mA (mA range), 4000 μA (μA range)
- Input Impedance: Approx. 10 MΩ or More (DC/AC Voltage Range)
- Sampling rate: 3 times/second
- Power supply/battery life: CR2032 type lithium battery 1/approx. 60 hours
- External dimensions/mass: 109.8 (W) x 10.8 (H) x 58.2 (D) mm/approx. 76 g (including battery)
- Accessories: Owner's Manual, Storage Case, Battery (Built-in), General Calibration Certificate
- *Since the circuit protection element ***s a PPTC element instead of a f***, the circuit protection element cannot be replaced.
- *The client name and address on the certificate will be blank.
- *The delivery time will be around 2 weeks beca*** we will proofread your order after it is confirmed. (However, please **** that it takes additional days for the New Year's holiday and the New Year holiday.)
- *As this is a made-to-order product, we cannot accept cancellations, returns or returns after ordering.
