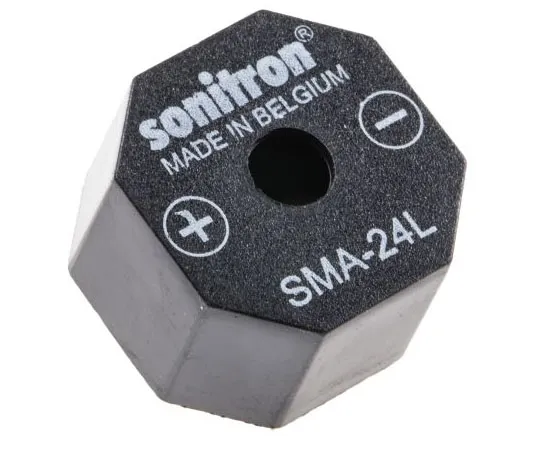

63-4716-70 Sonitron 1.5 → 15 V dc 98dB Through Hole Continuous Internal Piezo Buzzer, 2550 → 3450 Hz SMA-24L-P175
Product Description
Product Model: 63-4716-70Product Brand: Sonitron Featur […]
Contact Us
Product Details
Product Model: 63-4716-70
Product Brand: Sonitron
Features
- Square PCB mount continuous tone buzzer. Square cased PCB mounting High sound output buzzers Internal circuitry for dc operation
Spec
- Quantity：1piece
- Mounting Type : Through Hole
- Minimum Supply Voltage : 1.5V dc
- Maximum Supply Voltage : 15V dc
- Sound Level : 98dB
- Drive Type : Internal
- Tone Type : Continuous
- Diameter : 24mm
- Length : 24mm
- Depth : 24mm
- Height : 15.5mm
- Dimensions : 24 x 24 x 15.5mm
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +70°C
- Maximum Frequency : 3.45kHz
- Supply Current : 6.7mA
- CODE No.:178-4024
