65-3543-20 Tape-Type Multi-Purpose Temperature Sensor ST Series Pointed Polyimide for High Temperature (Tip Exposure) -50~400°C E Type ST-13E-010-GW1-ANP
Product Description
Product Model: 65-3543-20Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3543-20
Product Brand: ANRITSU METER CO., LTD.
Features
- The ST Series is an ultra-thin flexible tape-shaped multi-purpose temperature sensor.
- [Caution] ST series is designed to be ***d with the tape part attached to the object to be measured or sandwiched. Please **** that the operating temperature limit is the temperature shown in the table below when the tape part is attached or ***d by a method other than pinching.
- 150 mm< Tape Length →200°C
- The coating of the ST series is welded with Teflon resin or bonded with an adhesive. If the tape is placed in the air and maintained at a temperature higher than the operating temperature limit shown below, the coating may peel off and the thermocouple may short out. Please *** it carefully.
Spec

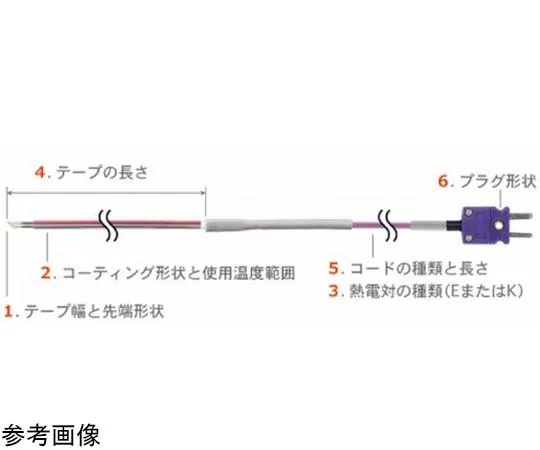

- Tape Width and Tip Shape: Standard Type Spur
- Coating Shape and Operating Temperature Range: Polyimide for High Temperature (Tip Exposed)/Operating Temperature Range: -50~400°C(max. 350 deg. C for tape lengths greater than 150 mm)
- Thermocouple Type: E Type
- Tape length (mm): 100
- Code Type: High Temperature Type Standard Code (ST- * 3, ST- * 4)
- Cord length (m): 1
- Plug Shape: Mini Plug (Thermocouple Homogeneous Metal)
