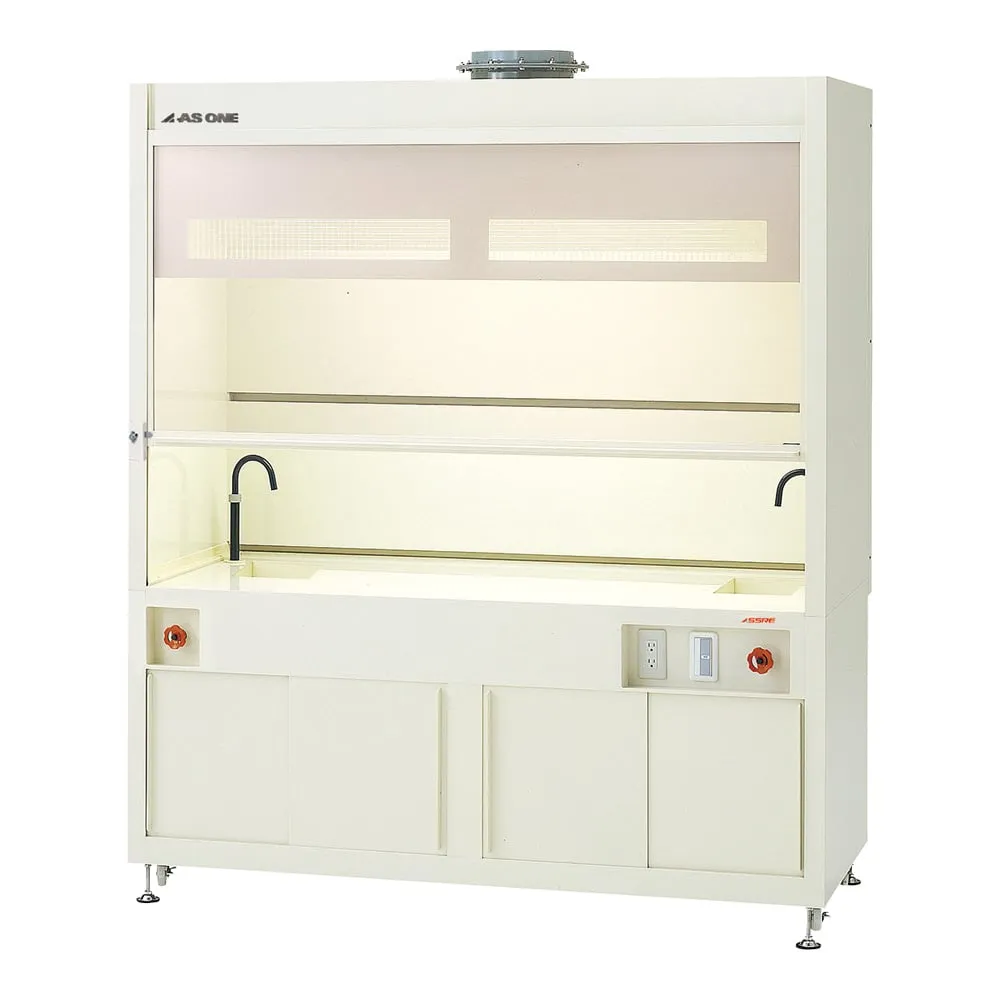

3-5859-01 ASSRE Fume Hood Working Plane Flat PVC Standard Type 1200 x 820/750 x 2150 ASP-1200
model:
3-5859-01
category:
gasmonitors
Product Description
Product Model: 3-5859-01 Features Both exterior and int […]
Contact Us
Product Details
Product Model: 3-5859-01
Features
- Both exterior and interior are made of rigid PVC, making it suitable for experiments and research using corrosive chemicals.
- A baffle plate is ***d on the back inside the hood for smooth exhaust.
- Gooseneck type water faucet is operated remotely by the handle on the front of the chamber.
Spec
- Exteriors, interiors, sinks: ASP, ADP/hard PVC (vinyl chloride resin), ASPP, ADPP/PP (polypropylene)
- Outer dimension (mm): 1200 x 820/750 x 2150
- Inner dimension (mm): 1100 x 670 x 1100
-
- Surface speed (m/s) 350mm opening: 0.5
- Air volume (m3/min): 12
- Connection port (φmm): 200
- Duct diameter (φmm): 200
-
- Feed drainage: 1
- Fluorescent lamps (volume): 20W x 2
- Weight (about kg): 151
- Sash: Transparent hard PVC (vinyl chloride resin) balance weight type
- Supply water plug: Gooseneck type universal water plug for pure water
- Lighting devices: Using fluorescent lamps, with switch
- Outlet AC 100V 15A double x 1 pieces included
- Model number: ASP-1200
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us.
