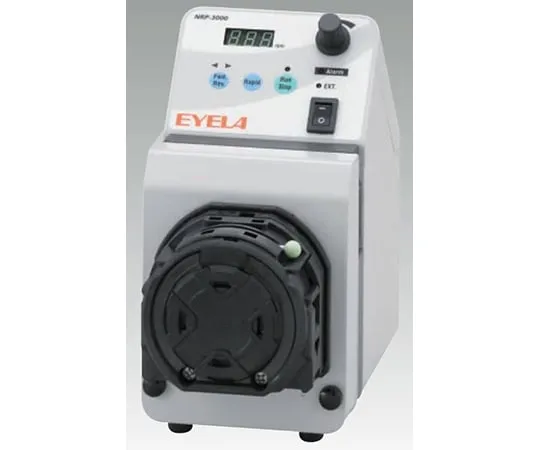

65-0583-79 Quantitative fluid pump roller pump NRP-3000P
Product Description
Product Model: 65-0583-79Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0583-79
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Compatible with 3 different sizes of tubes. Rich features.
- Supports a wide range of flow rates and tubes of different sizes
- It is possible to load three types of tubes of different sizes without having to replace the tube presser for each size. Since the tube presser and the case are integrated, loss of the tube presser is prevented.
- The tube case can be fixed every 90°. Since the suction and discharge points can be placed in the same direction, the tube can be installed with the proper length without being excessively pulled or broken.
- Uses a rapid switch. The pump is operated at the maximum flow rate, and the liquid can be filled in the tube path in a short time until just before the liquid feed destination.
- When adding an optional multi-stage tube case, tools are not required for easy installation.
- The NRP-3000P type tube case is made of PPS resin with excellent chemical resistance against acid, alkali and organic solvents.
Spec
- Flow rate ranges: 0.7 ~ 64 L/h (inner diameter 4.76 x outer diameter 7.94 mm tube), 1.2 ~ 104 L/h (inner diameter 6.35 x outer diameter 9.53 mm tube), 1.5 ~ 138 L/h (inner diameter 7.94 x outer diameter 11.11 mm tube)
- Performance:
- Flow rate accuracy: within +/- 4% (repeatability: within +/- 2%)
- Discharge pressure: Max. 137.3 kPa (1.4 kg/cm 2)
- Liquid viscosity/temperature: Max. 2 Pa/s (2000 cP)/- 10 ~ 100 degrees C (non-freezing)
- Rotating speed: continuously variable, continuously variable, 4 ~ 450 rpm
- Features:
- rotation control: feedback control
- Rotation setting and display: Multi-rotation volume setting and digital display
- Liquid feeding direction: forward/reverse switchable (LED display), with rapid function
- Accessories: One-touch tube replacement
- External input/output: External signal input terminal (DC 0 ~ 5 V), alarm output terminal (a contact output), sensor signal input terminal (leak sensor)
- Configuration:
- Motor: DC Brushless motor output 88 W
- Tube case: 1 for first stage (made of PPS resin)
- Standard:
- Number of tubes: 1 piece/1 step
- Usable tube materials: Silicon, Pharmed ®, Tygon ®, Versilon (Fullan ®)
- Usable tube diameter: inner diameter 4.76 x outer diameter 7.94 mm, inner diameter 6.35 x outer diameter 9.53 mm, inner diameter 7.94 x outer diameter 11.11 mm
- Operating ambient temperature range: 5 ~ 35 degrees Celsius (noncondensing)
- External Dimensions (mm)/Mass: 121 W x 276 (289) D x 226 (230) H/5.7 kg
- Power input/voltage: 1.6 A, 160 VA/AC 100 V 50/60 Hz
- *Performance is measured at room temperature of 25 degrees Celsius, rated power supply voltage of 50 Hz, water, liquid temperature of 21 degrees Celsius, back pressure of 0 and specified silicon tubing.
- *Tubes sold separately. Performance such as flow rate and discharge pressure varies slightly dep***ing on the tube ***d.
- *If the viscosity of the liquid ***d exceeds 0.1 Pa s (100 cP), the discharge may decrease.
- *The operating fluid temperature of the Tygon ® tube is 0 ~ 70 degrees Celsius.
- *Dimensions in parentheses include projections.
- Code: 270520
