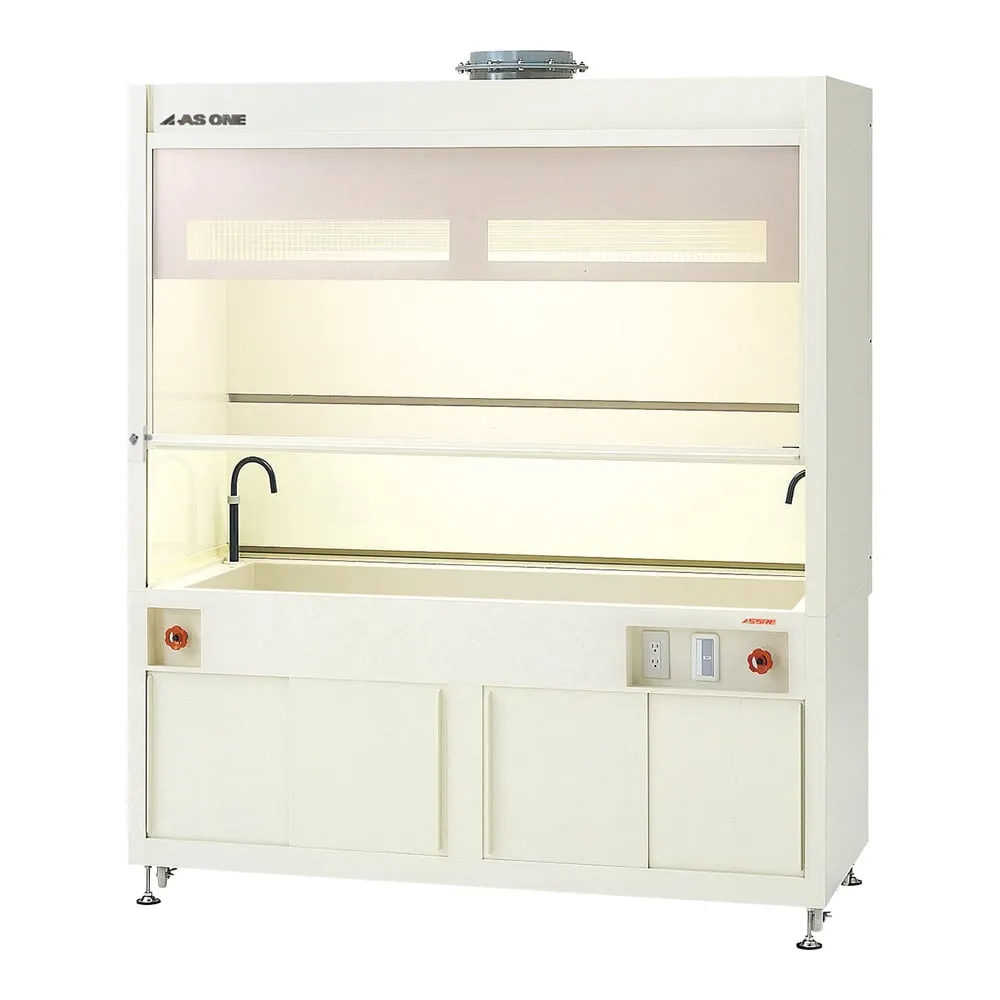

3-4620-01 Etching Chamber 1 Tank Type Heat Resistance PVC Standard Type 1200 x 820/750 x 2150 PSH-1200
model:
3-4620-01
category:
gasmonitors
Product Description
Product Model: 3-4620-01 Features A draft chamber suita […]
Contact Us
Product Details
Product Model: 3-4620-01
Features
- A draft chamber suitable for *** in etching and cleaning processes in semiconductor manufacturing processes.
- Made of hard PVC with excellent acid and alkaline resistance, it can be conveniently ***d for work using acid treatment or other chemicals.
- A baffle plate is ***d on the back of the inside of the chamber, so it can surely exhaust gas with heavy specific gravity.
- Gooseneck type water taps are operated remotely by the handle on the front of the chamber.
Spec
- Exterior, interior: PS, PD/hard PVC (vinyl chloride resin), PSH, PDH/heat resistance PVC (vinyl chloride resin)
- Sink unit: PS, PD/hard PVC (vinyl chloride resin), PSH, PDH/heat resistance PVC (vinyl chloride resin)
- Window: PS, PD/transparent hard PVC (vinyl chloride resin), PSH, PDH/transparent heat resistance PVC (vinyl chloride resin)
- Supply water plug: Gooseneck type universal water plug for pure water
- Lighting devices: Using fluorescent lamps, with switch
- Outer dimension (mm): 1200 x 820/750 x 2150
- Inner dimension (mm): 1100 x 670 x 1100
-
- Surface speed (m/s) 350mm opening: 0.5
- Air volume (m3/min): 12
- Connection port (φmm): 200
- Duct diameter (φmm): 200
-
- Feed drainage: 1
- Fluorescent lamps (volume): 20W x 2
- Weight (about kg): 181
- Outlet AC 100V 15A double x 1 pieces included
- Allowable temperature limit: Hard PVC (vinyl chloride resin)/40℃, Heat resistance PVC (vinyl chloride resin)/60℃ *As above is the standard temperature, it varies dep***ing on the usage condition.
- Model number: PSH-1200
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us.
