65-3530-66 Sheath Thermocouple Temperature Sensor Shape: Sleeve Type Outer Diameter 0.5φ 100 mm No Teflon Coating K Type B0.5-K-J1-M3-L100-TS1-ASP
Product Description
Product Model: 65-3530-66Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-66
Product Brand: ANRITSU METER CO., LTD.
Features
- A sheath type sensor (sheath thermocouple) is an internal temperature sensor that can hold the sheath in a bent state (like a wire).
- Ideal for temperature control of liquid temperature, air temperature and furnace temperature
- [Application] Atmospheric temperature control and temperature measurement in an electric furnace

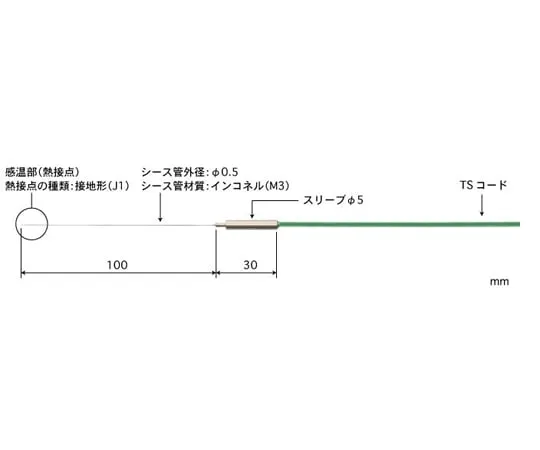

Spec
- Shape: Sleeve Type
- With or without Teflon coating: None
- Sheath Outer Diameter (φmm): 0.5
- Thermocouple Type: K Type
- Type of thermal contact: grounded type
- Sheath Tube Material: Inconel
- Sheath length (mm): 100
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
