65-3529-26 High Temperature Durable Surface Temperature Sensor Model 619 -50~1200°C K Type Straight 619K-010-TC1-ASP
Product Description
Product Model: 65-3529-26Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-26
Product Brand: ANRITSU METER CO., LTD.
Features
- Model 619/620/621 is a high-temperature durable surface temperature sensor with high durability for measuring high-temperature surfaces.
- Suitable for temperature measurement of relatively high temperature
- Due to the large heat capacity of the sensor head, it is not suitable for temperature measurement of insulator surfaces.
- [Application] Surface temperature measurement of carbon mold, metal surface temperature measurement in furnace, etc.
- Melting furnace wall surface temperature measurement, welding preheating temperature measurement, etc.
- Other general surface temperature measurement in heat treatment
Spec

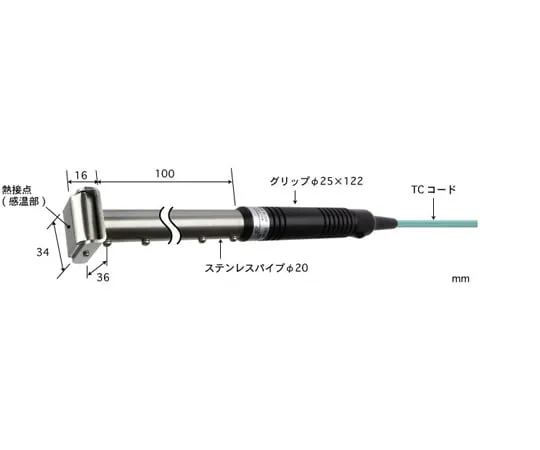

- Material: Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~1200
- Tolerance at 0~100 deg. C (deg. C): ±2.5
- Response Time (sec): 15
- Durability: 10,000 cycles or more
- pipe shapes: straight
- Thermocouple Type: K Type
- Pipe length (mm): 100
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
