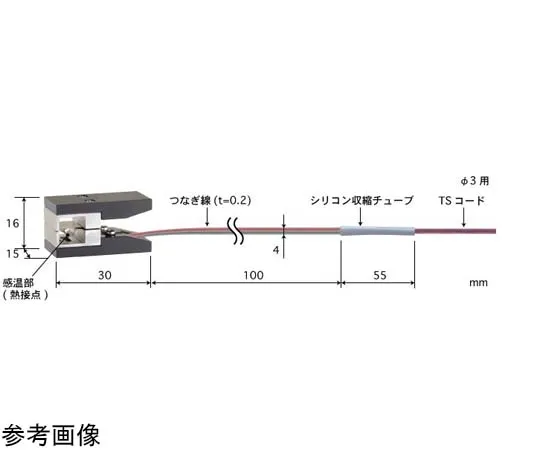

65-3528-60 Heat Pipe Temperature Sensor VA Series -50~300°C Type K 3φmm VA-03K-01-TS1-ASP
Product Description
Product Model: 65-3528-60Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-60
Product Brand: ANRITSU METER CO., LTD.
Features
- VA series is a clip type surface temperature sensor.
- Measure the surface temperature of the outer surface of the pipe.
- [Application] Surface temperature measurement of heat pipes
Spec
- Operating temperature range (°C): -50~300
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Corresponding Diameter (φmm): 3
- Type of thermocouple: Type K
- Length of connecting wire (mm): 100
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
