65-0570-61 Constant temperature oil bath About 1.1 L OHB-1100G
Product Description
Product Model: 65-0570-61Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0570-61
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Constant Temperature Oil Tank Can Be Used in a Wide Range of Applications
- Oil Bath Can Be Used in a Wide Range of Applications

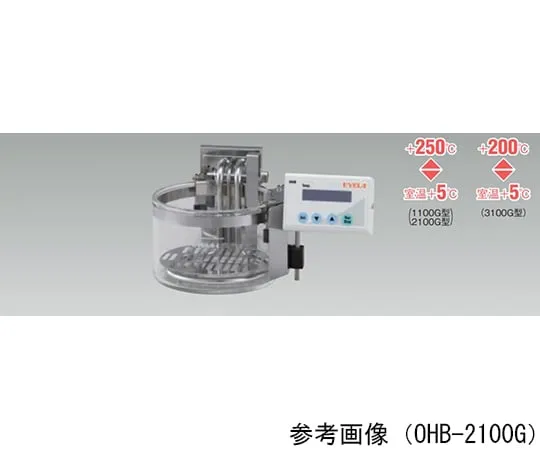

- The OHB type comes in two types: a glass tank (G-type) that allows you to check the stirring condition and a stainless steel tank (S-type) with an insulation cover. A stirrer is included for accurate temperature control while stirring.
- The control section can be removed and placed on the angle of the laboratory table.
- Adopting a digital setting and display (P.I.D control) temperature controller, it is easy to set and check the temperature and provides highly accurate temperature control. An external temperature sensor, sold separately, can be ***d to measure the temperature of the sample.
Spec
- Inside tank (effective) dimensions (mm): Inner diameter 120 x 95 (69) H
- Performance:
- Temperature adjustment range: room temperature + 5 ~ 250 degrees C
- Temperature control accuracy: +/- 0.3 degrees C (Setting: 200 degrees Celsius, stirring)
- Features:
- Temperature control: P.I.D control with auto tuning
- Safety features: F***, fixed temperature overheat protection, self-diagnostic (upper limit limiter)
- Configuration:
- Heater: 310 W
- Temperature sensor: Platinum temperature resistor Pt 100 ohm
- Standard:
- Water tank material: glass
- Inner Tank Dimensions (mm)/Capacity: Inner Diameter 120 x 95 H/About 1.1 L
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm): 253 (380) W x 210 D x 150 H
- Mass: About 1.9 kg
- Power input: 3.5 A, 350 VA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at room temperature of 25 degrees Celsius, rated power supply voltage, 50 Hz, no load and stirring. ( )Dimensions inside include projections.
- Accessories: Shelf, Teflon ® Stirrer (1 phi8 x 50 mm long)
- Code: 270460
