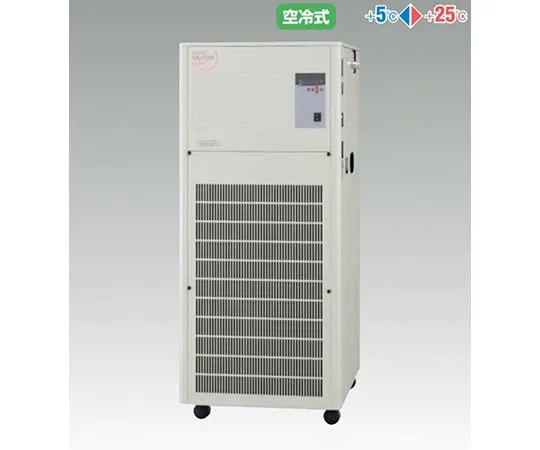

65-0569-65 Cooling Water Circulation Device Cool Ace Air Cooled/Sealed System Directional Circulation CA-3110
Product Description
Product Model: 65-0569-65Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0569-65
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- High-power Coolace series that can be ***d with built-in equipment as well as with built-in equipment at an ambient operating temperature of 5~40 degrees Celsius. High-power, with an ambient operating temperature range of 5~40 degrees Celsius, it can be operated even in production sites where air conditioning does not work in summer.
- It is equipped with a high-pressure pump that allows easy circulation even in high pressure-loss channels. In addition, a relief valve is installed as standard in the pump to prevent pressure loss from degrading the stirring efficiency in the tank.
- Temperature recording and alarm output terminals and external temperature sensor terminals are included as standard equipment to support the integration into industrial, machine tool and semiconductor manufacturing equipment. The S-type is further equipped with an emergency stop button, a remote control output terminal, a level gauge and a high and low pressure refrigerant pressure gauge.
- It can be ***d to cool large evaporators, to power an electron microscope, to cool a light source, to cool a heating part of a spectrophotometer, to cool a secondary He (helium) compressor, for a variety of applications, including integration into analytical equipment and industrial machinery.
- It is equipped with an automatic water supply mechanism and an overflow port, so there is no need to supply water with a bucket.
Spec
- Cooling/Circulation System: Air Cooled/Sealed System Directional Circulation
- Performance:
- Temperature setting range (accuracy): 5 ~ 25 degrees C (without heater), +/- 2 degrees C
- Cooling capacity (at liquid temperature) - 4500 W at 20 degrees C (3870 kcal/h), 3500 W at 10 degrees C (3010 kcal/h)
- External circulation capacity (50/60 Hz): maximum flow rate 37/44 L/min, maximum head 52/55 m (discharge pressure: 0.51/0.54 MPa)
- Features:
- Temperature control: Capillary tube capacity switching control + refrigerator ON-OFF control
- Temperature sensor: thermistor
- Temperature setting and display: Sheet key input and digital display
- External input/output: recorder output terminal: 1 ~ 4 VDC, external temperature sensor terminal, alarm output terminal: non-voltage contact (a contact) output 250 VAC/30 VDC Max. 2 A
- Safety functions: Leakage/overcurrent breaker, temperature controller self-diagnosis function, sensor malfunction, refrigerator overload, refrigerator high-pressure switch, refrigerator protection timer
- Accessory features: flow control, relief valve
- Configuration:
- Refrigerator/Refrigerant: Air-cooled output: 1.5 kW/R 407 C
- Circulation pump: Cascade pump output: 400 W
- Cooling Coils: Copper-Nickel-Plated
- Standard:
- Outlet/Return: Co-diameter of outlet/return port Rc 1/2
- Water Tank Material/Inside Size (mm)/Capacity: SUS 304/390 W x 390 D x 400 H/60 L (Liquid Amount 50 L)
- Operating ambient temperature range: 5 ~ 40 degrees C
- External Dimensions (mm)/Mass: 600 (680) W x 750 (825) D x 1400 H/Approximately 162 kg
- Power input/voltage: 10 A, 3.5 kVA/AC 200 V 3-phase 50/60 Hz
- Power utility: 200 VAC 3-phase 20 A capacity
- *Performance is measured at room temperature of 20 degrees Celsius, clean water, rated power supply voltage, 50 Hz and no load.
- *Cooling capacity is +/- 10% of display capacity.
- *Pure water can not be ***d.
- *Dimensions in parentheses include projections.
- Power plug not included.
- Code: 199760
