Electronic/Electrical Parts and Controll Equipments

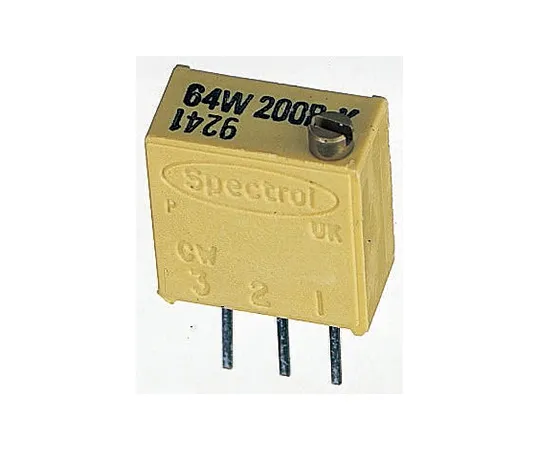

63-4697-22 Vishay 64W Series 19 (Electrical), 22 (Mechanical)-Turn Through Hole Trimmer Resistor with Pin Terminations, 200kΩ M64W204KB40
Product Description
Product Model: 63-4697-22Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4697-22
Product Brand: Vishay
Features
- Top Adjust 64W Series. Slim body profile, higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Double chevron shaft seal Moulded body with built in stand-offs IC style pins for PCB assembly Precious metal wiper for set point stability
Spec
- Quantity：1piece
- Maximum Resistance : 200kΩ
- Number of Turns : 19 (Electrical), 22 (Mechanical)
- Mounting Type : Through Hole
- Power Rating : 1/2W
- Series : 64W
- Orientation : Top Adjust
- Termination Style : Pin
- Length : 9.7mm
- Depth : 5mm
- Height : 11.1mm
- Dimensions : 9.7 x 5 x 11.1mm
- Shaft Diameter : 2.2 mm
- Tolerance : ±10%
- Minimum Operating Temperature : -55°C
- CODE No.:154-2094
