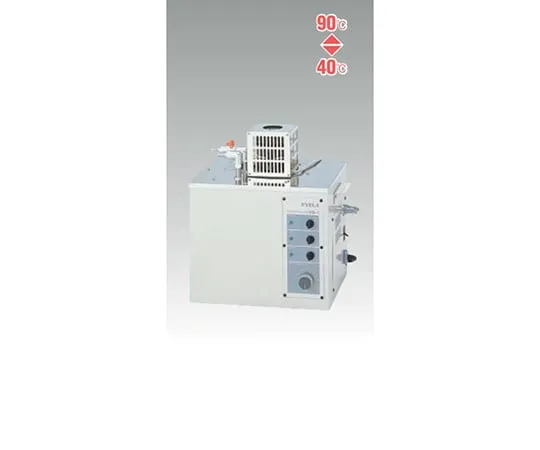

65-0567-76 Maximum flow rate of hot water circulator: 22.5 L/min HS-1100V
Product Description
Product Model: 65-0567-76Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0567-76
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Constant water is circulated to an external device. Supplies heat that can be maintained at a constant temperature.
- The 2 types of commercial power supply are compatible with 100 V and 200 V (single phase). The system can be built in accordance with the commercial power supply of the industrial and machine tools to be circulated.
- Constant water can be circulated to an external device to provide heat that can be maintained at a constant temperature.
- With a heater of 2 kW and a maximum flow rate of 22.5 L/min, it is possible to circulate stable hot water even to relatively large external devices.
- This product complies with the RoHS Directive.
Spec
- Circulation system: closed system countercirculation
- Performance:
- Temperature adjustment range and accuracy: 40 ~ 90 degrees C, +/- 3 degrees C
- External circulation capacity (50/60 Hz): maximum flow rate 22.5 L/min, maximum head 9.5 m
- Features:
- Temperature setting and control: Volume setting and heater ON-OFF control
- Safety features: Motor cover, ground fault and overcurrent breaker, fixed temperature overheat detector
- Configuration:
- Heater: 1.3 kW + 0.75 kW
- Temperature sensor: liquid expansion type
- Standard:
- External circulation nozzle: Both discharge and return ports (Rc 3/8) 12 mm outer diameter hose port
- Water Tank Materials, Dimensions (mm), Capacity: SUS 304, Inner Diameter 260 x 260 H, 13.5 L (Liquid Amount 12 L)
- Operating ambient temperature range: 5 ~ 35 degrees C
- External Dimensions (mm)/Mass: 384 (480) W x 314 (334) D x 461 H/Approximately 19 kg
- Power input: 26 A, 2.6 kVA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- *When the HS -1 is ***d at a temperature setting of less than 60 degrees Celsius, the temperature adjustment operation may not be possible dep***ing on the conditions (e.g., the difference between the operating ambient temperature and the set temperature is small).
- *Dimensions in () include projections.
- Power plug not included.
- Code: 113880
