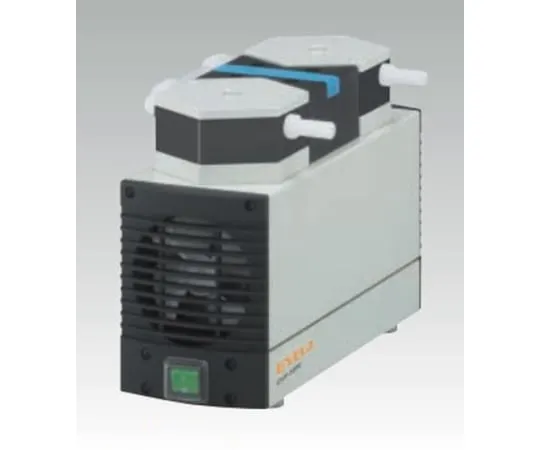

65-0566-86 Diaphragm type vacuum pump output 100 W EVP-1000
Product Description
Product Model: 65-0566-86Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0566-86
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Teflon ® and Kalrez ® specifications suitable for corrosive gases
- Chemical compatible diaphragm series
- Diaphragm type vacuum pump ***s Kalrez ® for the intake and exhaust valves, and the diaphragm head is also made of Teflon ®, making it suitable for exhausting corrosive gases.
- Since it has an oil-free dry seal structure, a clean vacuum can be obtained.
- Compact size, handle is retractable and convenient to carry.
- The vacuum reached is further improved by reducing the dead space in the exhaust chamber.
- Since water is not ***d for decompression, it is also suitable for protecting the drainage environment.
Spec
- Performance:
- Exhaust speed (50 Hz): 10 L/min
- Reached vacuum: 8 hPa (about 6 Torr) gas ballast closed
- Safety features: Thermal protector
- Configuration:
- Motor: 100 W output
- Cylinder: two-stage type
- Standard:
- Safety Standard: IP 44
- Gas Contact Material: TFMTM, PTFE, PVDF, Kalrez ®
- Intake and exhaust nozzles: outside diameter 10 mm hose mouth
- Operating ambient temperature range: 5 ~ 40 degrees C
- External dimensions (mm): 140 W x 281 D x 187 H
- Mass: 6.9 kg
- Power input: 1.4 A, 140 VA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated power supply voltage, 50 Hz, no load and dry conditions.
- *Diaphragms and valves are consumables.
- Code: 241940
