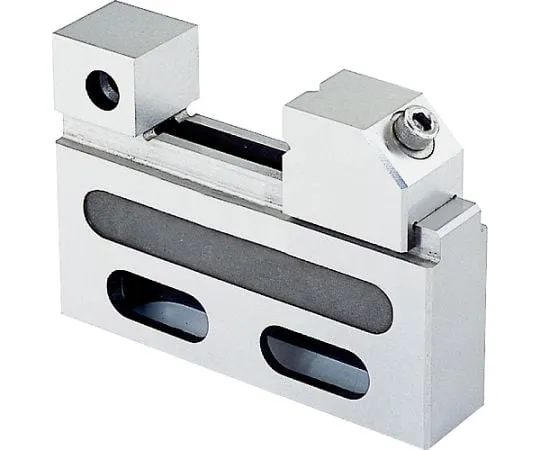

64-8775-42 EDM Tool Maker Vise WVS50
Product Description
Product Model: 64-8775-42Product Brand: TRUSCO NAKAYAMA […]
Contact Us
Product Details
Product Model: 64-8775-42
Product Brand: TRUSCO NAKAYAMA CORPORATION
Features
- Compact size perfect for small work.
- Clamp force works diagonally down by 45 degrees to suppress lifting of the workpiece, so that accuracy can be maintained for a long time.
- Stainless steel (SUS440) with high erosion resistance. (Hardness HRC58~60)
- For retaining the workpiece during wire EDM machining.
Spec
- Mouth Opening (mm): 55
- Mouth Depth (mm): 25
- Overall height (mm): 85
- Total Length (mm): 120
- Overall width (mm): 27
- Perp***icularity: within ± 0.002 mm/100 mm
- Parallelism: within ± 0.002 mm/100 mm
- Cap width (mm): 27
- Material/Finish: Stainless Steel (SUS 440)
- Set Contents/Accessories: Hex Wrench
- Country of origin: Taiwan
- Securities Code: 208 -3162
