laboratoryinstruments

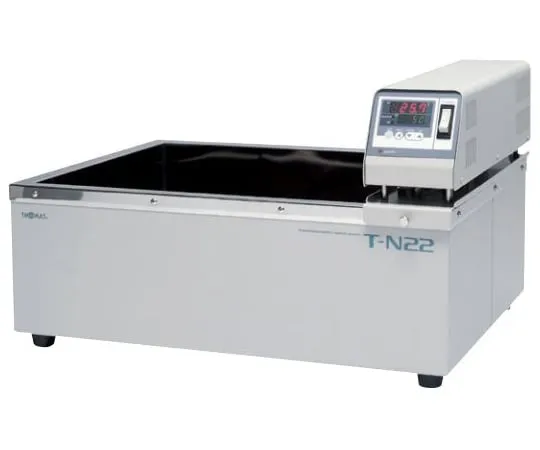

64-5196-91 thermostatic water bath T-N22
Product Description
Product Model: 64-5196-91Product Brand: THOMAS KAGAKU C […]
Contact Us
Product Details
Product Model: 64-5196-91
Product Brand: THOMAS KAGAKU Co., Ltd.
Features
- High performance but low price, easy to *** constant temperature water tank with wide stainless steel water tank.
- High-precision temperature control mechanism with digital PID control enables easy and reliable temperature setting and high stability control.
- Stirring with the jet stirring system keeps the temperature in the tank uniform.
- As a safety device, it is equipped with a power f***, temperature rise prevention, and heater blank fire prevention mechanism.
- The temperature controller part is removable, so only the temperature controller part can be replaced.
Spec
- External Dimensions: W520 x D390 x H320mm
- Tank Dimensions: W480 x D350 x H150mm
- Effective dimensions in the tank: W400 x D350 x H150mm
- Capacity: 20 L
- Temperature Range: Room Temperature +5°C to +60°C (MAX+80°C) * When using the lid However, the lid is not included.
- Temperature Control: Digital Temperature Indicator Controller PID Control System
- Temperature stability: within ±0.1°C
- Heater: Sheath wire type 1 kW (500 W x 2)
- Stirrer: jet stirring system
- Safety devices: power f***, temperature rise prevention, air burning prevention
- Material: Inner Tank/Stainless Steel (SUS-304), Exterior/Steel Plate Baked Finish
- Power: 100 VAC 10 A 50/60Hz, 2 m power cord
- Weight: approx. 13 kg
- Optional: Stainless Steel Variable Height Shelf Board, Stainless Steel Lid
- The circulating pump CP-22 can also be ***d to circulate the medium fluid to the outside.
