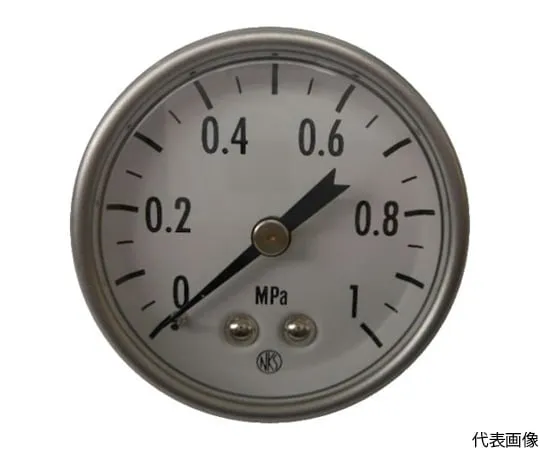

64-7270-63 small pressure gauge GK25-161-1.0MP
Product Description
Product Model: 64-7270-63Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 64-7270-63
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- This pressure gauge is ***d to measure the pressure of small equipment or pneumatic equipment, and is ***ful for downsizing the entire equipment.
- Compact and lightweight, convenient for places with limited mounting space.
Spec
- Pressure range (MPa): 0~1.00
- Minimum Scale (MPa): 0.050
- Connection Size: R1/8
- Case Shape: D
- Accuracy: ±3% FS
- Size (mm): 40
- JIS compliant product
- Material/Finish: Bourdon Tube: Brass, Stock: Brass
- Country of Origin: Japan
- Product Code: 838-3526
