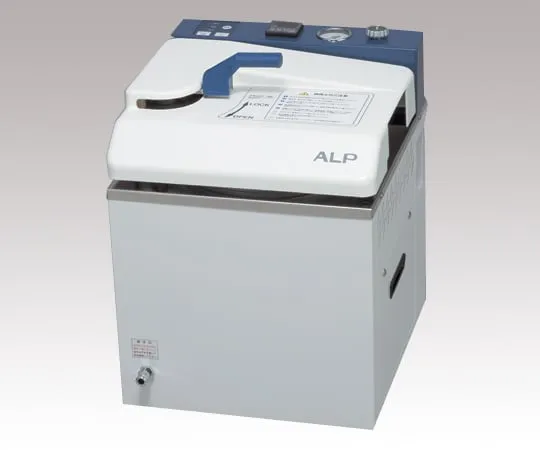

2-8610-01-22 High-Pressure Steam Sterilizer with Inspection Document TR-24S
Product Description
Product Model: 2-8610-01-22Product Brand: ALP Co., Ltd. […]
Contact Us
Product Details
Product Model: 2-8610-01-22
Product Brand: ALP Co., Ltd.
Features
- Can be operated with one hand from opening and closing the lid to locking.
- The lid lock cannot be released unless the inside of the can becomes 79°C or lower.
- Only three operations are required: start, stop, and unlocking. Setting of sterilization temperature and sterilization time is also easy.
Spec
- Inner Dimensions: φ240 x 223 mm
- Heating System: Electric Heating Pipe Heater 1.4 kW
- Sterilization temperature range: 105~127°C (0.02~0.16 MPa)
- Temperature display: Digital (1°C unit)
- Pressure Gauge: Analog 0~0.4 MPa
- Time setting range: 1 minute to 99 hours 59 minutes
- Air vent type: temperature sensing and time control solenoid valve system
- Safety devices: Futter interlock device, empty burning prevention device, overpressure safety switch, safety valve, safety breaker
- Material: Simple Pressure Vessel/Stainless Steel (SUS304), Exterior/Steel Plate (Melamine Baking Coating), Lid Cover/Heat Resistant Resin, Lid Packing/Silicon Rubber
- Power: 100 VAC 50/60Hz 15 A with 3P plug
- Power consumption: 1.5 kW
- Weight: 28 kg
- External Dimensions (mm): 371 x 432 x 473
- Can Capacity (L): 12
- microclave
- Accessories: Wire Net Basket φ210 x 200 mm x 1, Exhaust Bottle (Separate 2 L), Sheet Plate, Exhaust/Drain Hose
- *This product is not a medical device. Please *** it for research and development purposes.
- *It cannot be ***d to sterilize medical instruments.
