64-1189-11 Housing 6SL-2S 26812160
Product Description
Product Model: 64-1189-11Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1189-11
Product Brand: ADVANTEC
Features

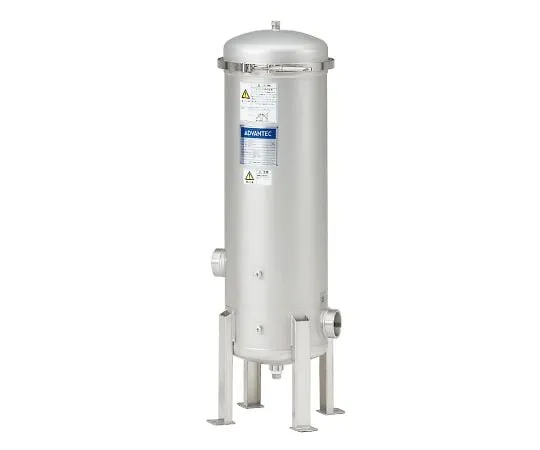

- This is an economy type multi-ply stainless steel housing consisting of two parts, a lid and a torso.
- The filter has a spring seal system.
- The lid and cylinder are sealed with V-band coupling and cylinder O-ring, so the lid can be easily removed. *Cannot be ***d to filter gases.
Spec
- Number of Cartridges: 500 mm x 6 pieces
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- IN, OUT Shape: 2 "PT
- Dimensions ( mm ) : overall height/957 , full width/350
- maximum working pressure ( MPa ) : 0.49
- material: Body/SUS304, Pedestal/SUS316L, O-Ring/NBR, Washer: PTFE
- Mass (kg): 19.0
