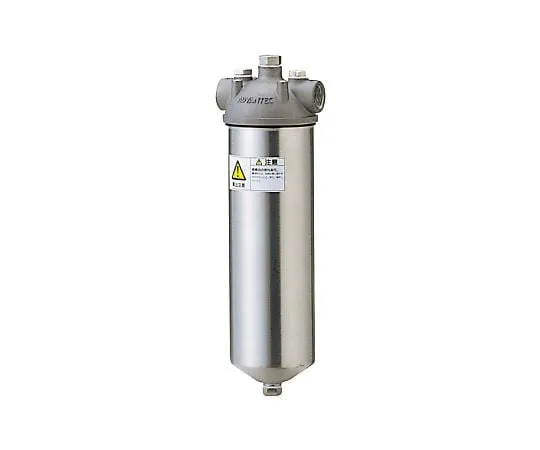

64-1188-98 Housing 1TS 26804010
Product Description
Product Model: 64-1188-98Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1188-98
Product Brand: ADVANTEC
Features
- By removing the bag nut on the top of the head, you can easily replace the filter.
- The IN and OUT shapes are 3/4 inch PT and 1 inch PT.
- Cartridge Filter Shape Codes C, F (Flat Gasket DOE) and TCW type filters are available.
Spec
- Number of Cartridges: 250 mm x 1 piece
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- IN, OUT Shape: 3/4 "PT
- Dimensions ( mm ) : overall height/366 , full width/121
- maximum working pressure ( MPa ) : 0.69
- material: Body/SUS316, Head/SCS 14, Gasket/FPM, PTFE
- Mass (kg): 2.0
