63-4675-21 RS PRO 2 x 115V, 2 x 18V Toroidal Transformer, 15VA 124-3871
Product Description
Product Model: 63-4675-21Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4675-21
Product Brand: RS PRO
Features

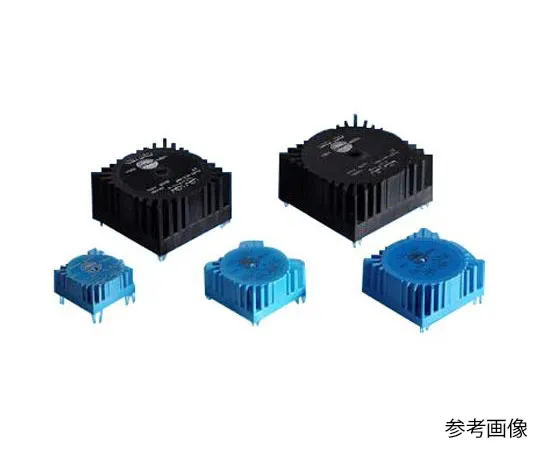

- RS Pro Toroidal PC Transformer 1.6 VA→25 VA
- The RS Pro Toroidal PC transformer is a compact and lightweight transformer with high efficiency and low profile. These toroidal transformers feature low iron loss and low induction noise. Dual 115 V primary windings that can be connected in parallel or in series.
- Features • Low stray magnetic field Reduction of standby current Test voltage 1st order -2 order 4.0 KV Easy to mount - M4 Center bush ambient operating temperature: +60°C maximum Fully compliant with RoHS and REACH
Spec
- Primary Voltage Rating:2 x 115V
- Secondary Voltage Rating:2 x 18V
- Power Rating:15VA
- Secondary Current:417mA
- Height:26.3mm
- Weight:304g
- Dimensions:60 x 60 x 26.3mm
- Maximum Operating Frequency:50Hz
- Mounting Type:Through Hole
- Isolation Voltage:4kV
- CODE No.:124-3871
