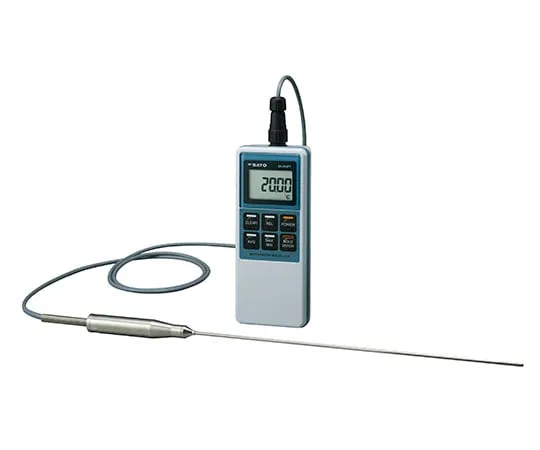

64-0700-88 Precision Digital Standard Thermometer/Medium Temperature Sensor (Grip) with JCSS Calibration Certification SK-810PTS810PT-32
Product Description
Product Model: 64-0700-88Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 64-0700-88
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- This product is a high-resolution, high-precision digital thermometer with JCSS calibration documents. * The calibration technology section of the Miyagi Plant of Sato Metering Instruments Co., Ltd. ***s ISO/IEC 17025 as the certification standard, and the certification scheme is certified under JCSS, which operates in accordance with ISO/IEC 17011. JCSS0110 is the certification number of this calibration technical division. The Accreditation Agency (IAJapan) that operates the JCSS is a signatory to the mutual recognition of the Asia-Pacific Accreditation Cooperation (APAC) and the International Association for Laboratory Accreditation (ILAC).
- A calibration certificate with the JCSS logo and 2 documents of the calibration result are included as a set. * Calibration points are 0,100,200°C. Although it is a handy-type digital thermometer, it has a high-resolution display of 0.01°C in the entire measurement range of -100°C to +360°C and a combination with a high-performance sensor to achieve a high precision measurement with an overall accuracy of ±0.16°C. *The measurement range of the attached medium temperature sensor is 0~200°C. Other sensors for low temperature (-100~50°C) and high temperature (150~360°C) are available separately.
- Platinum temperature measuring resistor Pt100 (4 wire type) is ***d for the sensor part, and it shows its power even in the low temperature range where high precision temperature measurement was difficult until now.
- Rich arithmetic and HOLD functions. Intuitively operable key placement In addition to the current temperature display, the maximum (MAX), minimum (MIN), relative (REL), and moving average (AVG) values can be calculated and displayed. By using the HOLD function, the measured value can be easily read even when the temperature of the object to be measured is not stable.
- Compatibility between functionality, durability and design Even when placed on a desk, the display is tilted by approximately 7 degrees, and visibility and visibility are greatly improved by the large number segments.
- Wall hooks do not interfere with the design beca*** of the structure they pull out when ***d on walls. The neck strap hole is installed on the bottom of the case.
- The case protection packing on the outer periphery of the indicator minimizes case breakage when the indicator falls.
- Highly waterproof indicator (JIS C0920 IPX7 compliant) Indicators are highly waterproof with the sensor firmly connected. Even if you touch it with wet hands or it gets wet, there is no problem in its function.
- Measurements can be made for approximately 1,000 hours using alkaline batteries. Although the usable time varies in the measurement environment, 4 AAA alkaline batteries can be ***d for long periods of time.
- Note: Japanese battery manufacturers prohibit the *** of rechargeable Ni-MH batteries in sealed devices. Use a non-rechargeable manganese or alkaline battery.
Spec
- Specifications: Body Display Range: -105.00 to + 365.00 °C * Measurement Range of the attached low temperature sensor is 0 to 200 °C.
- Resolution: 0.01 °C
- Precision: Body/± (0.05 + 1 digit) °C (at 23 °C ± 5 °C), Sensor ± 0.1 °C * Overall precision is ± 0.16
- Temperature Coefficient: ± (0.002% rdg + 0.008) °C/°C * at 23 °C ± 5 °C
- Waterproof: Conforms to JIS C 0920 IPX7 * When connected to the sensor
- environment ***d: 0 °C to: 50 °C 80% rh or less (non-condensing)
- Power Supply: AAA size alkaline battery x 4 pieces (Included for testing)
- battery life: about 1000 hours (when using alkaline battery)
- material: Body/ABS Plastic, Sensor/Thermosensitive SUS316, Grip/SUS304, Cord/Silicon
- Main functions: HOLD, MAX/MIN, REL (relative value), AVG (moving average value)
- Size: Body/70 x 169 x 42 mm, Sensor/Temperature Sensing Part/φ 3.2 x 250 mm, Grip/φ 18 x 107 mm, Cord/About 1.5 m
- Weight: Body/Approximately 220 g, Sensor/Approximately 208 g
- Accessories: AAA size Type alkaline battery 4 pieces, Vinyl Cover for Indicator, 1 piece, Neck Strap 1 piece
