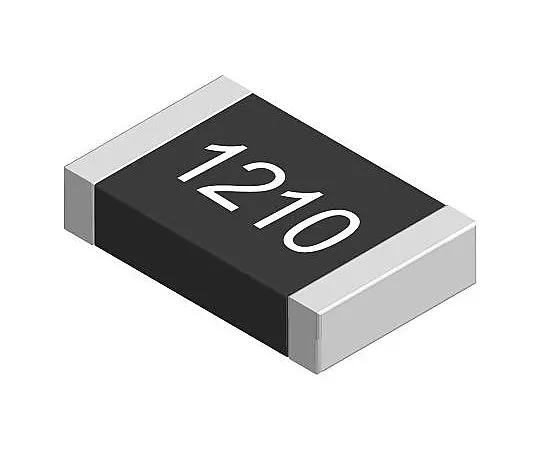

63-4669-70 Thick Film Chip Resistor RK73H2ETTD2001F
Product Description
Product Model: 63-4669-70Product Brand: KOA Features AE […]
Contact Us
Product Details
Product Model: 63-4669-70
Product Brand: KOA
Features
- AEC-Q200 Certified 1210 Thick Chip Resistor, RK73H Series 1% KOA's RK73H Series Precision Resistor is a compact and lightweight solution.
- This precision resistor with a three-layer electrode structure has excellent reliability and high stability.
- The *** of metal glaze thick film provides excellent weather and heat resistance.
- This precision resistor is ideal for both flow and reflow soldering and is ***d in automatic mounting machines.
- All RK73H chip resistors except the 01005 case size are AEC-Q200 certified and suitable for automotive applications.
- Small, lightweight, stable and reliable lead-free terminal jumper resistor is also included.
Spec
- Quantity: 1 bag (50 pieces)
- Resistance: 2 kΩ
- Technology: Thick Film
- Package/Case: 1210
- Tolerance: ± 1%
- Rating Power: 0.5 W
- Temperature Coefficient: ± 100 ppm/K
- Length: 3.2 mm
- Depth: 2.6 mm
- Series: RK 73 H
- Operating temperature Min: -55 °C
- Operating temperature mAx: + 155 °C
- case styles: mold
- RoHS Compliance Status: Compliance
- Securities Code: 123 -4407
