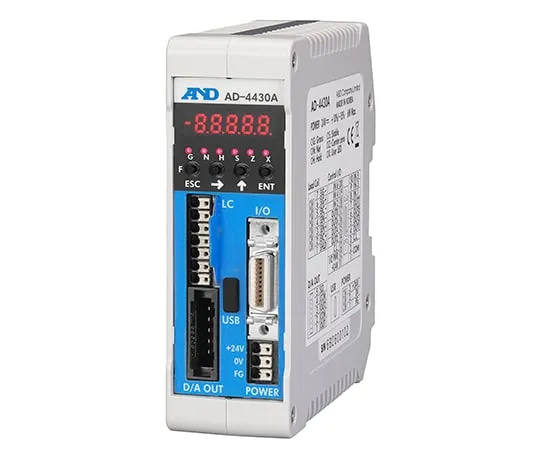

63-7049-45 4 -20 mA DIN Rail Winging Module AD-4430AJA
Product Description
Product Model: 63-7049-45Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 63-7049-45
Product Brand: A&D
Features
- A 4-20 mA analog output winging module suitable for process control and constant feedware (CFW) control.
- It has 2 channels of D/A converter with 16bit resolution, and each can set different data and digital filter.
- In addition to the high performance digital filter (vibration removal function), it is equipped with set point, hold function, comparator function, high order linearity correction, near zero detection function, zero tracking function, gravity acceleration correction function, flow calculation function, etc.
- DIN rail mounting type ideal for integration into control panel.
- Analog 4-20 mA output 2 systems installed
Spec
- External dimensions: 35 (W) x 110 (H) x 101 (D) mm
- Input sensitivity: 0.15 μV/d or more
- 0 adjustment range: -35 mV to + 35 mV (-7 mV/V to + 7 mV/V)
- Load cell applied voltage: 5 VDC, 5% ±, 60 mA/with remote sensing function, 350 Ω load cell, connectable to 4 pieces
- Temperature Coefficient: 0 Point ± 0.02 μV/°CTyp., ± 0.1 μV/°CMax., Span ± 3 ppm/°CTyp., ± 15 ppm/°CMax.
- Nonlinearity: 0.005% ofF.S.
- Maximum Measurement Range: -35 mV to + 35 mV (-7 mV/V to + 7 mV/V)
- A/D Conversion Method: Delta Sigma Method
- Internal resolution: Approx. 16 million
- Maximum display resolution 99999 d (up to 20,000 d recomm***ed)
- Sampling rate: 1000/sec
- Accessories: Simple Instruction Manual
