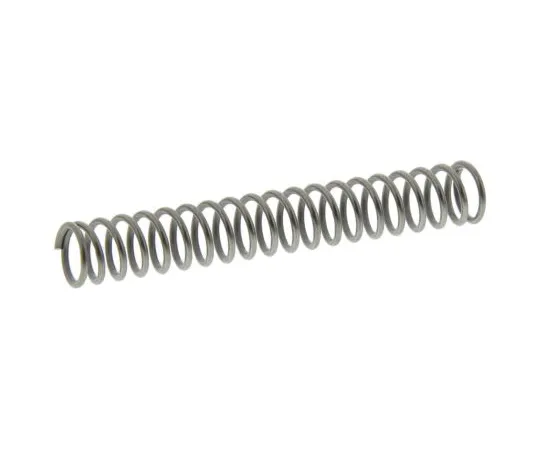

63-4655-04 RS PRO Stainless Steel Compression Spring, 38.5mm x 5.63mm, 0.58N/mm 821-374
Product Description
Product Model: 63-4655-04Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4655-04
Product Brand: RS PRO
Features
- Material conforms to DIN 17224 No. 1, 4310 or BS2056 EN58A. The load at the minimum operating length is the load required to compress the spring to its length.
- All dimensions and tension conform to DIN 2095 (Grade 2).
- Stainless Steel Compression Springs
- Termination is perp***icular to the length and unpolished appearance: Brown/Bronze right hand roll
Spec
- Outside Diameter:5.63mm
- Wire Diameter:0.63mm
- Free Length:38.5mm
- Minimum Working Length:16.2mm
- Load at Minimum Working Length:12.91N
- Material:Stainless Steel
- Spring Rate:0.58N/mm
- Ends:Closed (Square)/Unground
- CODE No.:821-374
