Features

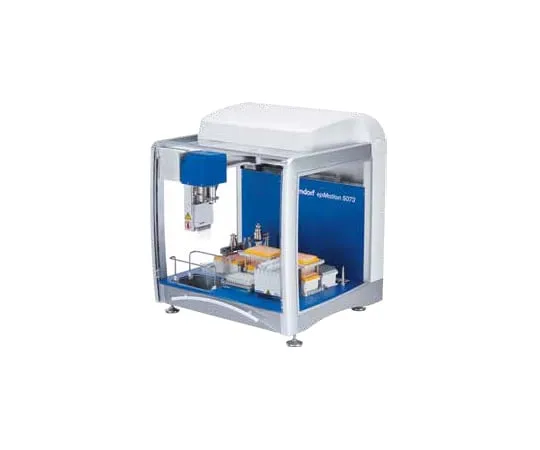

• The epMotion 5073 series is designed for PCR setup and nucleic acid extraction, but is also flexible as an open platform for other liquid handling applications.
• By automating previously complex and labor-intensive pipetting tasks, you can save time and improve the reliability and reproducibility of your results.
• Work table + virtual position function in 6 locations
• Software assistant for each application, dispensing tools and accessories attached
• Optional gripper, 1 thermal module
• UV sterilization and Clean Cap option with built-in HEPA filter
• epMotion 5073 l is a flexible system that automates time-consuming and complex pipetting tasks. All pipetting operations are more accurate, accurate, reproducible, and standardized for the best results.
• ANSI/SLAS worktable in 6 locations
• Specialized MutliCon PC with mo*** and keyboard also selectable
• Optical sensor for fluid level, labware, and chip detection
• Automatic replacement of 2 dispensing tools
• Volume range: 0.2 ~ 1,000 μL
• 0.2 Supports -50 mL tubes and plates up to 384 wells
• UV lamp and HEPA filter options
• Thermal module option for temperature control (C2 position)
• Use
• PCR setup
• Sample dispensing, dilution, and standardization
• Assay setup
• Medium exchange, cell culture application
• epBlue – Intuitive operation and programming
• Simple and clear. epBlue comes pre-installed on all epMotion systems and guides you through the daily pipetting process. The touchable structure of epBlue is consistent with a guided menu, simply selecting objects in the Home section and following commands from left to right. The unparalleled ease of *** of epBlue allows complex methods to be created in minutes.
• Intuitive and graphical ***r interface
• Pattern recognition for easy programming of complex dispensing patterns in 96 and 384 wells
• Many labware databases - Most labware can be ***d
• Liquid class Allows you to adjust settings such as suction and drainage speed for different liquids for maximum performance
• Import CSV files for standardization and cherry-picking
• Safe operation with 3D display simulation
• Simulate on PC before actually running the program
• User management
• The Epp***orf MultiCon PC version defines a new dimension of ease of *** and safety. As a premium product, it comes with industrial PCs that ensure the reliability of maximum work through standardization, and each PC is subjected to multiple quality checks.
• Simplified - Large touch screen or mo*** and keyboard operation
• Network interface allows remote operation of epMotion via Ethernet connection
• Preinstalled epBlue software and assistant
• Exchange of CSV and XML files via USB or LAN
• Safe operation via database wareho***
• Simulation operation in 3D view of workstation
• Five USB ports, two Ethernet ports
• epBlue ID software upgrade option
• Developed in accordance with GAMP5
• epBlue GxP software upgrade option
