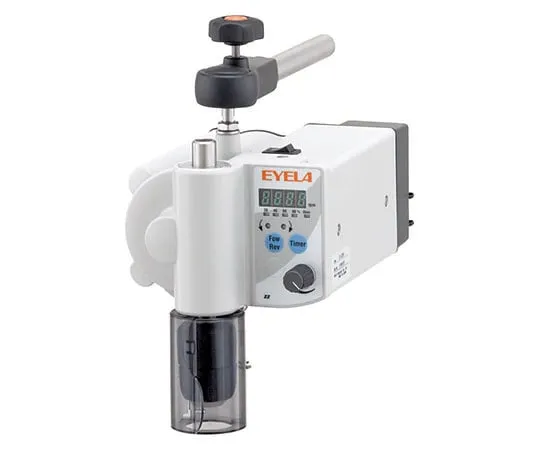

63-1396-80 High-Torque Stirrer Mazera Series ZZ-2121
Product Description
Product Model: 63-1396-80Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-80
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- High torque and compact design
- Remote control of rotation speed is possible with external signal input. It is equipped with an external signal output terminal that can record changes in rotational speed and load torque to a recorder.
- With the function of automatic inversion, constant direction and inversion can be selected, and efficient stirring can be performed. The automatic reverse interval can be selected from 5, 10, 20, 30, 45, and 60 seconds.
- Air barge opening is standard on the back of the main body. The supply air pressure is higher than the external pressure to prevent the infiltration of solvents and acids.
Spec
- Rotational speed range: 20 ~ 1200
- Maximum torque: N, m/rpm/0.392/1200, kgf, cm/rpm/4/1200
- rotation control: speed feedback control
- Rotation speed setting/display: Volume setting/digital display 4-digit
- Torque display:% of maximum torque display (20, 40, 60, 80, OVER)
- Safety features: Thermal protector, current limiting circuit, chuck cover
- Accessory features: Throw-up/down, freak lamp, air purge port
- External input/output: rotation control input DC 0 ~ 4.7 V, rotation output DC 0 ~ 3.9 V, torque output DC 0 ~ 4 V
- Flip function: Automatic flip time 0, 5, 10, 20, 30, 45, 60 seconds Set and switch
- Motor Rated Torque: DC Brushless Motor Output 80 W/0.196 N/m (2 kgf/cm)/3000 rpm
- Stirring Bar Outer Diameter/Chuck Portion: Phi8 (Standard)/Collet Chuck
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 130 x 210 (227) x 158 (173) mm (379 D: When installing the freak lamp)/* Dimensions in () include projections.
- Mass: About 3.0 kg
- Power input/voltage: 3 A, 300 VA/AC 100 V 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- Accessory: 1 clamp
- Code: 263020
