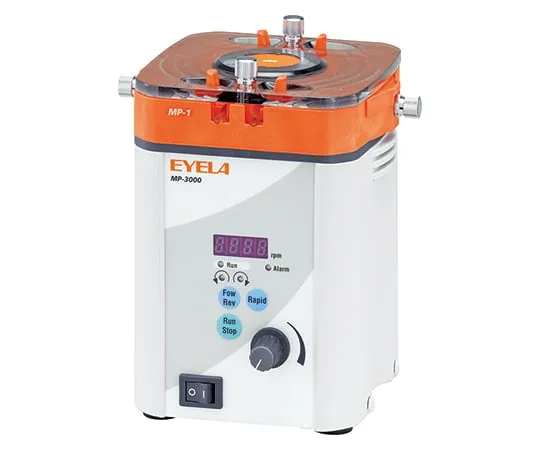

Spec

• Variable screw type
• Flow rate range: 0.06 ~ 1450 mL/h x 2
• Flow rate accuracy: +/- 2% (within +/- 1% repeatability)
• Maximum discharge pressure: 196 kPa (2 kg/cm2)
• Maximum suction pressure: 9.8 kPa (0.1 kg/cm 2)
• Liquid viscosity/temperature: Max. 2 Pa/s (2000 cP)/0 ~ 60 degrees C (non-freezing)
• rotation settings: volume settings
• Display: 7-segment LED 4 digits
• Liquid feeding direction: forward/reverse switchable, with rapid function
• Motor: DC servomotor output: 15 W
• Driving circuit: Speed feedback servo control
• Tube case: PET resin
• Safety features: Abnormal rotation detection alarm, thermal protector
• Number of tubes: 2
• Number of tube case stages: 1 stage (can be increased up to 2 stages)
• Usable tube materials: Silicon, Tygon (R), Versilon (Fullan (R)), Pharmed (R)
• Usable tube diameter: outer diameter 3 ~ 6.1 mm
• Operating ambient temperature range: 0 ~ 40 degrees Celsius (noncondensing)
• External dimensions: 137 (166) x 130 (148) x 177 (190) mm/* Dimensions in () include projections.
• Weight: approximately 1.8 kg
• Power input/voltage: 1 A, 100 VA/AC 100 V 50/60 Hz
• *Performance is based on room temperature of 20 degrees Celsius, rated power supply voltage, water, liquid temperature of 18 degrees Celsius, back pressure of 0, and silicon tube.
• Tubes sold separately. Performance such as flow rate and discharge pressure varies slightly dep***ing on the tube ***d.
• Code: 251360
