62-6247-96 Wireless Temperature Logger Sub Unit (Indicator Only) SK-L700R-T
Product Description
Product Model: 62-6247-96Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 62-6247-96
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- Logger function This data logger can store up to 16000 pieces of measurement data. (In the case of temperature channel 2 or temperature and humidity type, the measurement data of each channel 16000 is stored.)
- Wireless communication Using the master unit (repeater) and wireless communication, various settings are made without wiring.
- The stored data can be collected.
- Measurement data stored in the unit can also be copied to a microSD memory card (sold separately).
- The storage data copied to the microSD memory card can be read by the analysis software.
- Even if the battery runs out, the stored measurement data is retained in the internal memory.
- Even when the battery is changed or the battery runs out, the data will not be lost.
- To prevent storage from stopping due to incorrect operation of the key lock function, the slave unit can be keylocked.
- Can be ***d with both power battery and AC adapter (sold separately).
- Up to two integrated and separated sensors can be connected simultaneously. (* Sensors are sold separately)
- It also has a dustproof and waterproof structure in accordance with JISC0920 "IP 65." (* When connecting the isolation sensor for the wireless temperature logger) * * The master unit SK-L700R, the temperature sensor SK-L700R-T-1 or the SK-700R-T-2 are separately required for *** as a data logger.

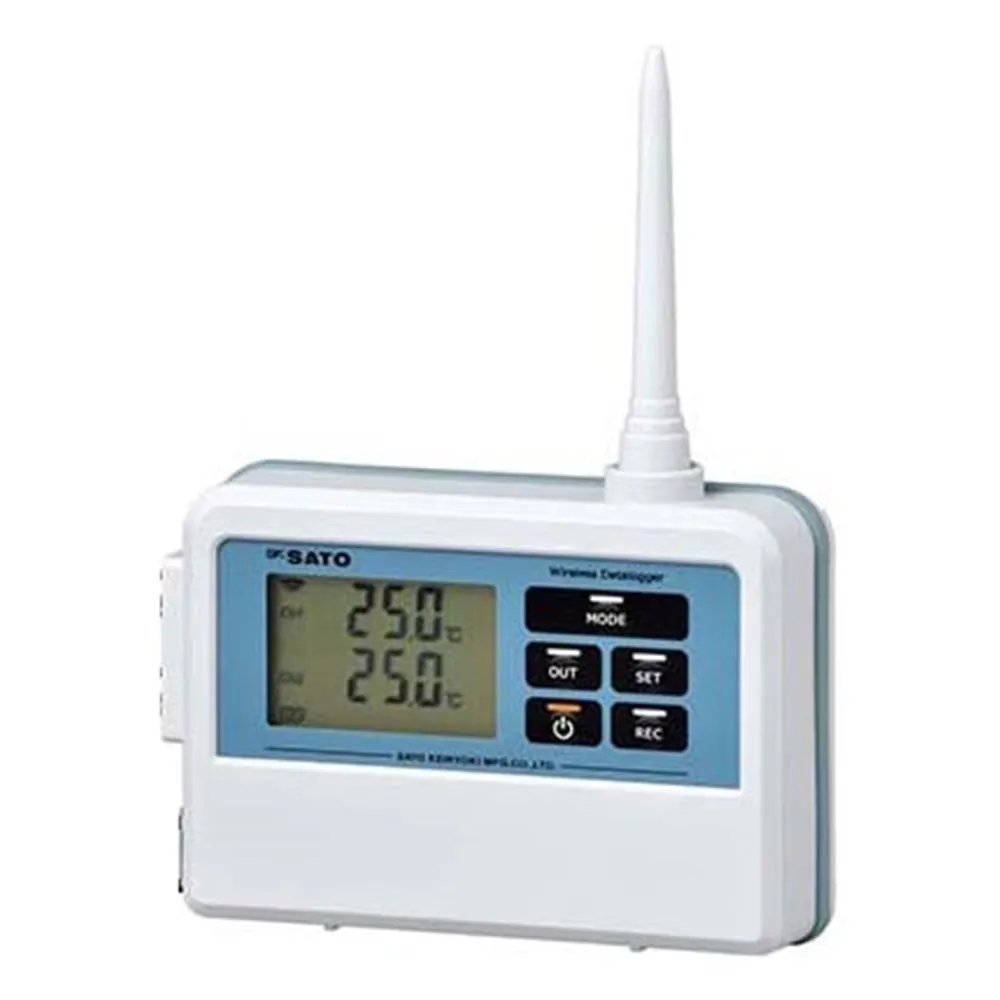

- The image is when the sensor is installed.
Spec
- Measurement range: The measurement range varies dep***ing on the sensor connected.
- Resolution: 0.1 ℃
- Display accuracy: at 0 to 40 ℃, temperature: ±(0.1 ℃ + 1 digit) ℃
- *Other than the above: Temperature/±(0.2 ℃ + 1 digit) ℃ + 1 digit) ℃ * When using, the total accuracy is calculated by adding sensor accuracy separately.
- ShowSampling: About 1 second
- Visibility:
- *temperature alarm (ALM), storage system (→ ∞), display in memory (REC), storage capacity (toolbar.),
- *Received signal strength (antenna mark), SD memory (SD), low battery mark,
- *Each error message and setting value display at each setting
- Number of measurement channels: two temperature channels
- Memory capacity: Channel 16000 data
- Memory: interval : 1 second, 2 second, 5 second, 10 second, second, second, 30 second, 1 minute, 2minute, 5 minute, 10 minute, 15 minute, 30 minute, 15 minute, 13/60
- External memory: microSD, SDHC up to 32 GB
- Wireless standards : ARIB STD-T 108 compliant 920MHz band/output approx. 20 mW
- Distance: Outdoor view approx. 400 m, Indoor view approx. 100 m * Distance varies by environment ***d.
- Supported OS: Windows (R) 7/8/8.1/10
- *We have demo units, so please try them.
- environment ***d: 10 to 60 ℃ 85% rh or less * Non-condensing
- Power supply: AA size battery 2 pieces (test attachment) AC Adapter
- battery life: approx. 10 months * LCD OFF set, memory interval 10 minutes, when wireless communication environment is good
- Size: approx. (W) 114 x (H) 80 x (D) 35mm * Antenna, projection not included.
- Weight: about 245 g * Including battery
- Accessories: AA size, battery, 2 pieces (test attachment)
- Code: 8221 - 00
