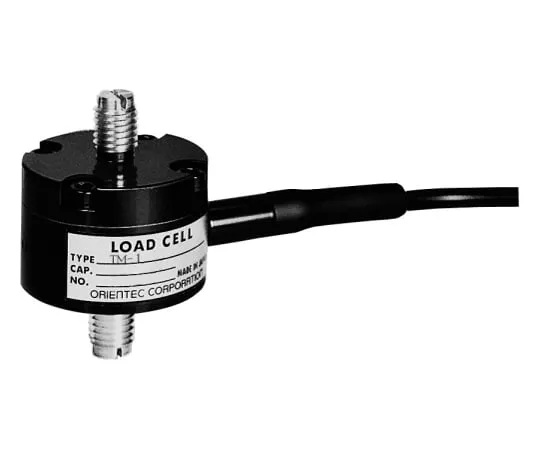

62-3149-40 Sealed Structure Type Small Load Cell TM-1
Product Description
Product Model: 62-3149-40Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-40
Product Brand: A&D
Features
- Sealed structure type small load cell for force measurement
- Multi-purpose type.
- Compact and lightweight, easy to handle, ideal for dynamic weighing.
- Fully sealed structure containing inert gas.
- Tension type.
- Temperature effect of 0 point: 0.1%ofR.O./10°C
- Temperature effect of output: 0.1%ofLoad/10°C
- Cable thickness/length: φ5/3m
- Dustproof/waterproof: IP67
Spec
- External dimensions: (W) 85 x (D) 62 x (H) 144 mm
- rating capacity: 10 kN (1.020 t)
- rating Output: 2.0394 mV/V ± 0.5%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.2% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 18 V
- Zero balance: ± 10% of R.O.
- Resistance between input terminals: 425 ± 50 Ω
- Resistance between output terminals: 350 ± 5 Ω
- insulation Resistance: 1000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 60 °C
