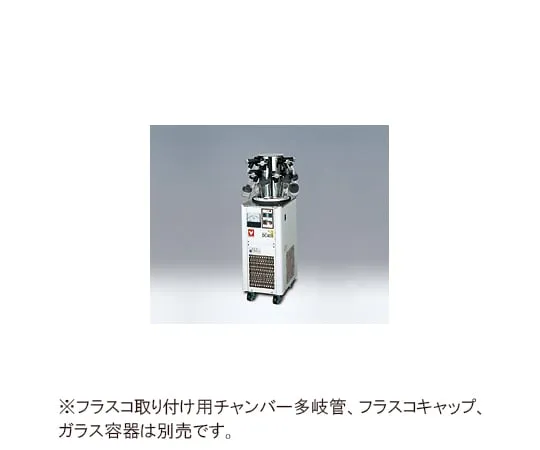

61-9660-67 Freeze Dryer DC401
Product Description
Product Model: 61-9660-67Product Brand: Yamato Scientif […]
Contact Us
Product Details
Product Model: 61-9660-67
Product Brand: Yamato Scientific Co., Ltd.
Features
- A safety mechanism is installed in the vacuum path to automatically leak when the power supply is turned off or the power goes out to prevent backflow of vacuum oil.
- Uses a hot gas bypass system that thaws and removes ice from the can smoothly.
- Equipped with a Pirani vacuum gauge, freeze-drying with high accuracy is possible.
- Equipped with a service outlet for a vacuum pump linked with a safety valve.
Spec
- Trap cooling temperature: -45℃
- Dehumidifying volume: 0.6L
- Time-of-arrival of lowest temperature: 35 minutes (+20 -> -45℃)
- Trap dimensions: φ153 x Height 235mm
- Outer dimensions: Width 340 x Depth 450 x Height 720mm
- Internal capacity: Approximately 4L
- Power (50/60Hz): 100VAC (service outlet capacity: 8A)
- Applicable vacuum pump displacement: 50/60L/min
