63-4641-52 RS PRO Insulated Crimp Spade Connector, 2.5mm² to 6mm², 12AWG to 10AWG, M6 Stud Size Vinyl, Yellow 534-474
Product Description
Product Model: 63-4641-52Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4641-52
Product Brand: RS PRO
Features
- RS Pro Insulated Spade Connector
- RS Pro insulated crimped spade terminal products are made of tin plated copper. This spade connector is insulated by vinyl or nylon and can be easily inserted by flaring. The insulation is colored according to the wire size ***d. All models boast high reliability and excellent quality.
- Features & Benefits: Available in a variety of metric sizes • Available in red, yellow, and blue • Available in a variety of wire sizes
Spec
- Insulation:Insulated
- Width:12mm
- Minimum Wire Size mm²:2.5mm²
- Maximum Wire Size mm²:6mm²
- Minimum Wire Size AWG:12AWG
- Maximum Wire Size AWG:10AWG
- Stud Size:M6
- Colour:Yellow
- Contact Plating:Tin
- Contact Material:Copper
- Thickness:1mm
- CODE No.:534-474
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5138-59 Hirose HR25 Series Miniature Cable Mount Connector, 8 contacts Plug HR25-7TP-8P(72)
model: 63-5138-59
brand: Hirose
Electronic/Electrical Parts and Controll Equipments

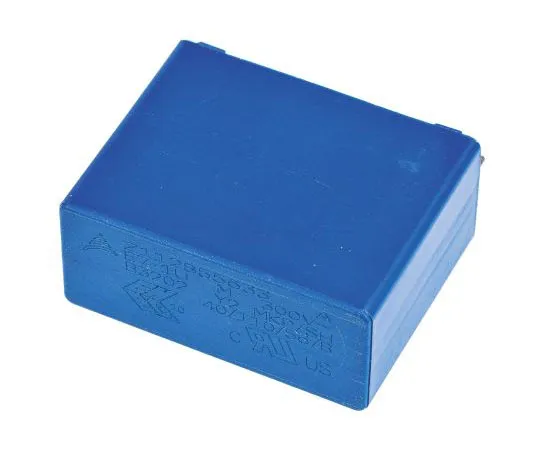

63-7666-66 EPCOS 1μF Polypropylene Capacitor PP 300V ac ±20% Tolerance Through Hole B32026 Series B32026A3105M000
